Eetamax Clara Cleanroom Lights

Eetamax Clara cleanroom light is reliable, robust, durable, and with low maintenance while at the same time delivering uniform, glare-free light distribution. Top operable clear room lights typically used with walkable ceilings in clear room areas compliant with ISO 14644-1 grade ISO 7 (FED STD Eq. Class 10,000) clean room standards.


Features

  • Aesthetically designed housing made from CRCA
  • Electrostatically powder coated for excellent corrosion resistance
  • Bottom frame with powder coated finish or in SS 304 Grade in mirror finish
  • Milky acrylic diffuser sealed with non-hygroscopic VHB gasket to ensure moisture proof and dust proof performance
  • Ingress Protection IP54 / IP65
  • Impact Resistant IK O7
  • Removable LED driver for easy maintenance from top side
  • Two way connectors for loop-in loop-out cable connection
  • Suitable for slab mounting and walkable modular panels
  • Suitable for Class 100 to Class 1000 applications

Applications

  • Industrial Sheds
  • Food Production
  • Sports Halls
  • Heavy Industry
  • Warehouses etc.

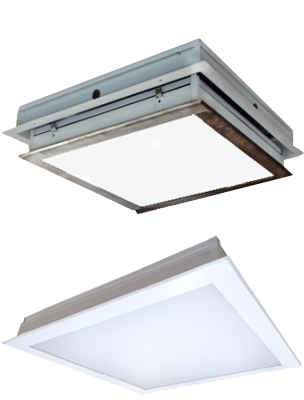

Top Openable Cleanroom Lights

EETAMAX CLARA 2X2 RECESSED CLEANROOM - TOP OPENABLE LIGHTS

Luminaire Specification

Available Variant

25W / 30W / 35W / 40W / 50W / 60W / 80W / 100W

System Efficacy (Lm/Watt)

>100 lm/W

L70 Life

>54,000 Br.hrs

Operating Temperature From 0° to +50° C
LED Lamp
Light Source SMD LED
Lamp Efficacy >150 lm/W
Colour Temperature 1700K-6500K, @590nm Sodium Light Also Available

CRI

>70

Certification/Report

LM80, Photo Biologically Safe

Beam Angle

120°


LED Driver Specification
Type of Driver Constant Current
Input Voltage Range 150 VAC ~ 265 VAC
Frequency Range 50 Hz

Power Factor

> 0.97

Total Harmonic Distortion

< 10 %

Surge Protection

4 kV

Protection

Surge Protection, Output Short Circuit, Overload Protection, Over Voltage Protection, Thermal Protection, Mis - Wiring Protection

EMI / EMC

EMI / EMC Compliance (Optional)

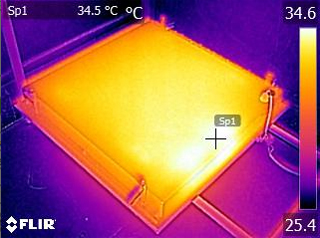

Good Thermal Management

Good Thermal Management for Maintenance Free Long Life

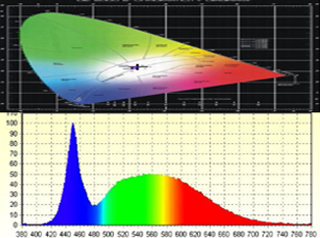

In-house Photometry Test Lab

In-house Photometry Test Lab

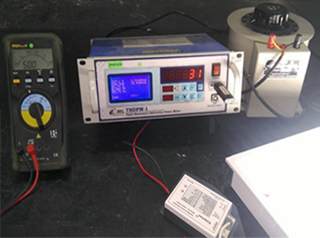

Electrical Power Analysis

Electrical Power Analysis And Insulation Safety Testing Of 100% Products

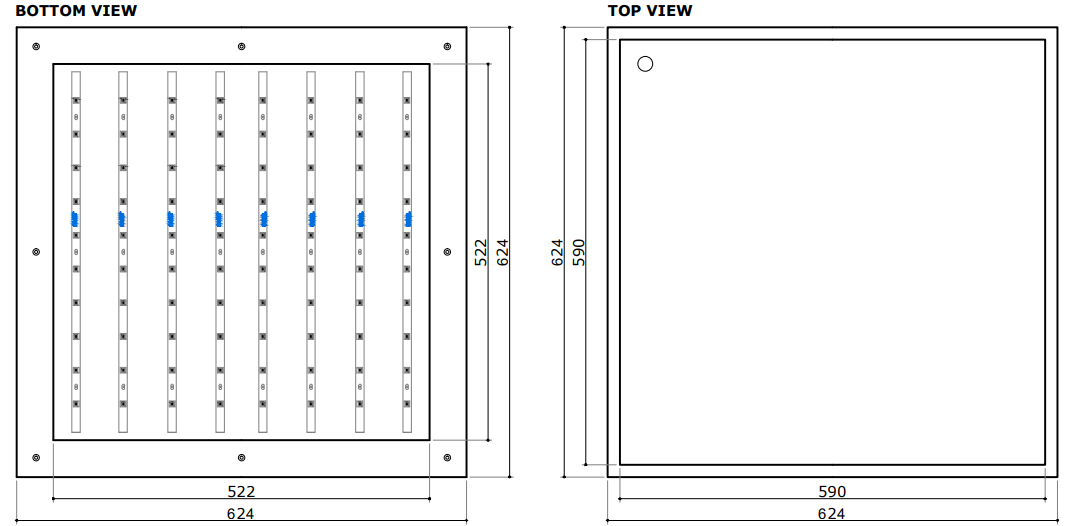

bottom and top view dimensional drawings

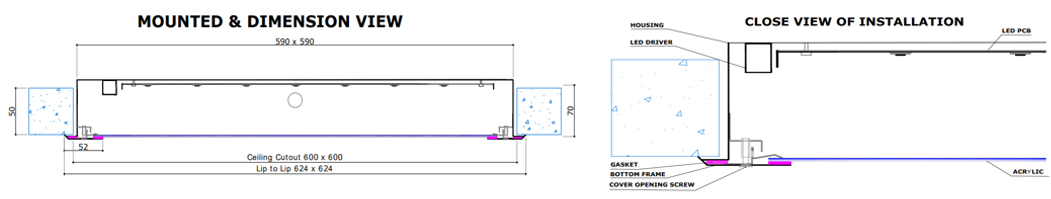

close view
bottom openable
