Linear High Bay LED Lights
We are Manufacturer, Supplier and Exporter of LED Linear High Bay Lights. This product is also known as Linear High Bay Lights, High Bay Lights etc. Our setup is situated in Ahmednagar, Maharashtra, India. We provide best quality LED Lightning solutions for Industries.

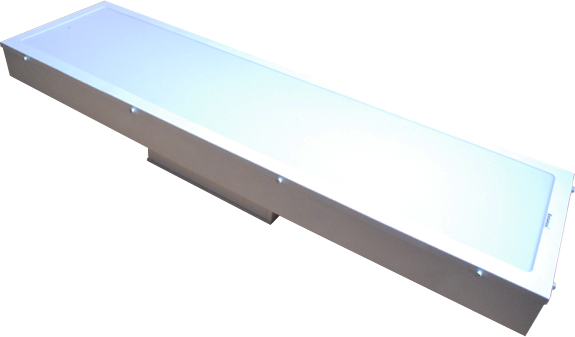

Eetamax Linear Highbay Lights is a perfect lighting solutions for industrial illumination. Sleek and beautiful linear high bay product for replacement of conventional 4x36 and 4x54 fluorescent high bay lights. This product gives diffused light distribution to cover larger area and for glare free operation, while providing high system efficacy for more energy savings.
Features
- Aesthetically elegant & Robust design
- Excellent thermal design for long life
- Delivers Uniform Light distribution
- Inbuilt Electronic Protections
Applications
- Machine Shops
- Production Hall
- Inspection Area
- Laboratory
- ICU's
- Food Industry etc.
| Mechanical Specification | |
Fixture Housing |
CRCA Housing in Sheet Steel with White Powder Coating |
Diffuser Closure |
Milky Diffuser / Tougheded glass |
IP & IK |
IP40 & IK05 |
| Luminaire Specification | |
| Available Variants | 80W / 100W / 120W / 150W |
| System Efficacy ( Lm/W ) | >110 lm/W / 105 lm/W / 100 lm/W / 95 lm/W |
| L70 Life | >54,000 Br.hrs |
Operating Temperature |
From 0° to +50° C |
| LED lamp | |
Light Source |
SMD |
Lamp Efficacy |
>150 lm/W |
Colour Temperature |
6500K (Other CCT Available on request) |
| CRI | >80 |
| Certification / Report |
LM80, Photo Biologically Safe |
| Beam Angle |
120° |
| LED Driver Specification | |
Type of Driver |
Constant Current |
Input Voltage Range |
150VAC ~ 265VAC |
Frequency Range |
50 Hz |
| Power factor | > 0.97 |
| Total Harmonic Distortion | < 10 % |
| Surge Protection | 4 kV |
| Protection | Surge Protection Output Short Circuit Overload Protection Over Voltage Protection Thermal Protection Mis- Wiring |
| Optics | |
| Optics Type | Milky Diffuser for Glare Free Symmetric Light Distribution |
| MOC of Optics | Polystyrene Sheet |
LINEAR STANDARD PARAMETERS
| Sr. | System Wattage | Lumen Package | Length (mm) | Width (mm) | Fixture Height (mm) | Weight (Kg) |
| 1 | 80W | 8800 lm | 1100 | 325 | 50 | 8.5 Kg |
| 2 | 100W | 10500 lm | ||||
| 3 | 120W | 12000 lm | ||||
| 4 | 150W | 14225 lm |
