Tender Description

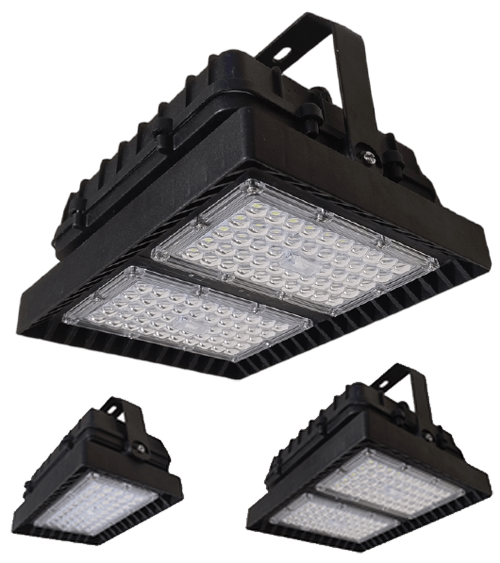

LED flood light luminaire with total input power consumption of 100W. Delivered lumen output of 15000 lm at efficacy >= 150 lm/W. CCT 5700K. CRI >70. Pressure die-cast aluminum heat sink for ensuring LED Tj < 85°C and Driver Tc < 80°C as per ISTMT tests. IP66. IK08. Operating ambient temperature (ta) range -10°C to +50°C. Mean rated service life L70 (ta 45 °C) > 100,000 hrs. Rotationally asymmetric elliptical light distribution suitable for fencing illumination is achieved through a UV-stabilized PC lens. Suspension through eye bolts and cradle mounting. Constant current driver with an input voltage range of 100VAC ~ 300VAC. Power Factor >0.95. THD < 10%. In-built surge protection up to 6kV in the driver, with an additional 10kV internal SPD. Short Circuit Protection, Overload Protection, Over Voltage Protection, Under Voltage Protection, Reverse Polarity Protection, 440V AC protection for up to 8 hours, and Thermal Protection in the driver. Connection through single phase 3 core cable, earthing mandatory.
