Eetamax Avira LED Bay Lights

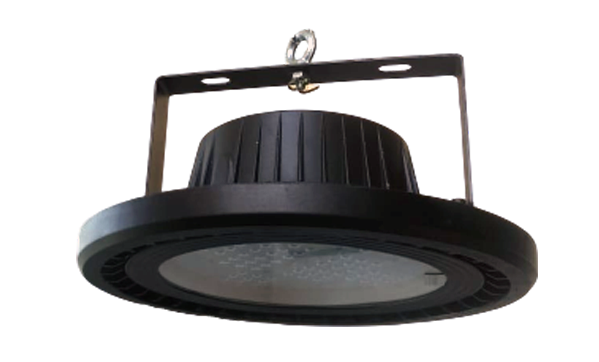

Avira LED High Bay is the perfect lighting solution for industrial shop floor illumination. It delivers more light in lesser wattage with very high system efficacy of >150 lm/W. Avira LED High Bay is extremely reliable, robust, durable, and with low maintenance while at the same time delivering uniform, glare-free light distribution. Avira LED High Bay is easy to install with loop-in loop-out facility for power supply and single point suspension to centrally integrated eye bolt hooks.


Features

  • Aesthetically elegant & Robust design
  • Higher system Efficacy >150 lm/W
  • Excellent thermal design for long life
  • Delivers Uniform Light distribution
  • 10kV Surge Protection and inbuilt Electronic Protections

Applications

  • Industrial Sheds
  • Food Production
  • Sports Halls
  • Heavy Industry
  • Warehouses etc.
avira-led-bay-lightsavira-led-bay-lights

save-capexSave CAPEX
save-OPEXSave OPEX
IP66IP66
IK08IK08
lm-79LM80
150 lm/W >150 lm/W
request-quote


Mechanical Specification

Fixture Housing

PDC Aluminium Alloy Housing (Heatsink) with powder coated with Separate driver box

Diffuser Closure

Toughened Glass

IP & IK

IP66 & IK08

Connection type Loop in & Loop out feature for cable connection
Luminaire Specification
Available Variants 30W / 40W / 50W / 60W / 80W / 100W / 120W / 140W / 150W / 160W / 180W / 200W / 300W
System Efficacy ( Lm/W ) >150 lm/W
L70 Life >70,000 Br.hrs

Operating Temperature

From -20° to +50° C

LED lamp

Light Source

SMD

Lamp Efficacy

>200 lm/W

Colour Temperature

6500K (Other CCT Available on request)
CRI >70
Certification / Report
LM79, LM80, Photo Biologically Safe
Beam Angle
30° / 60° / 90° / 120°
LED Driver Specification

Type of Driver

Constant Current

Input Voltage Range

30W to 60W (150VAC ~ 236VAC)

80W to 300W (100VAC ~ 305VAC)

Frequency Range

50 Hz - 60 Hz

Power factor > 0.97
Total Harmonic Distortion < 10 %
Surge Protection 4 kV + 10 kV External SPD
Protection Surge Protection
Output Short Circuit
Overload Protection
Over Voltage Protection
Thermal Protection
Mis- Wiring
440 VAC protection
Optics
Optics Type Rotationally symmetric light spread
MOC of Optics PC/ PMMA

AVIRA STANDARD PARAMETERS

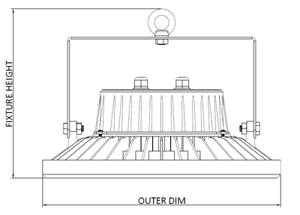

avira-led-bay-lights-dg Sr. System Wattage Lumen Package Outer Dimension (mm) Fixture  Height (mm) Weight  (Kg)
1 30W 4500 lm 133 185 1.5 Kg
2 40W 6000 lm
3 50W 7500 lm
4 60W 9000 lm
5 80W 12000 lm 265 217 3 Kg
6 100W 15000 lm
7 120W 18000 lm 375 250 4.5 Kg
8 140W 21000 lm
9 150W 22500 lm
10 160W 24000 lm
11 180W 27000 lm
12 200W 30000 lm 325 285 5.8 Kg
13 300W 45000 lm 425 296 10.8 Kg
avira-led-bay-lights

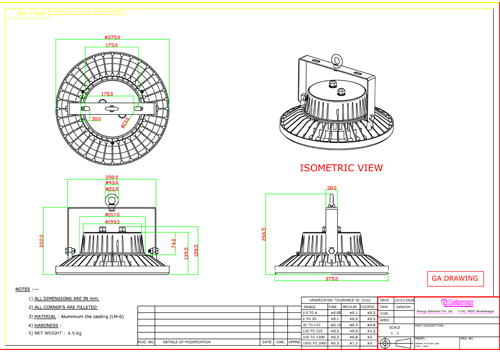

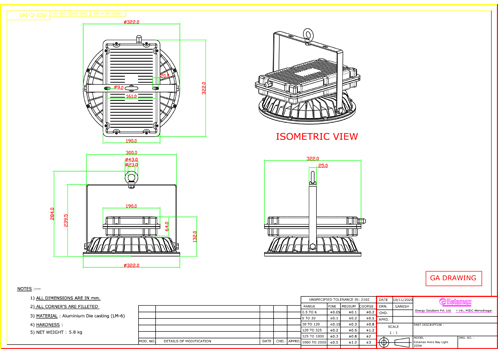

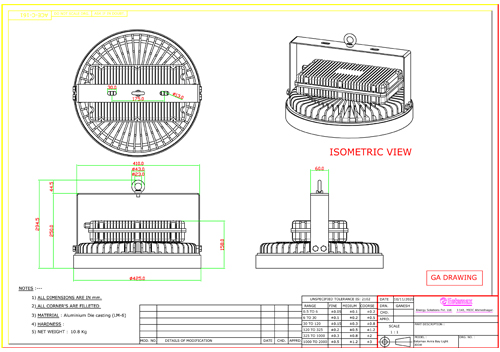

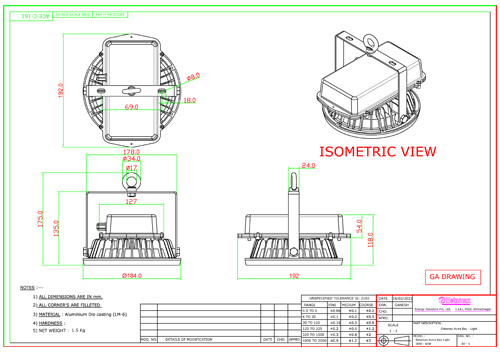

GA Drawings

avira-bay-light-300w

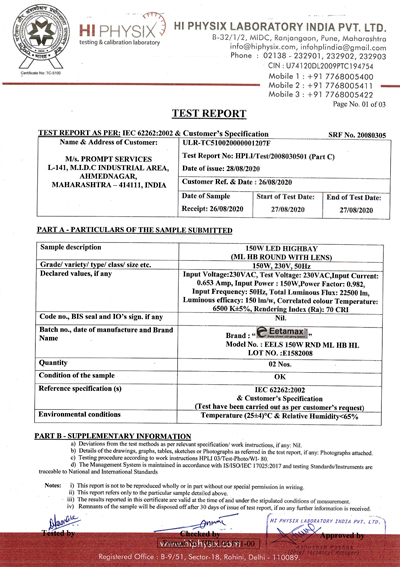

IK 08 Report

avira-bay-light-ik-report

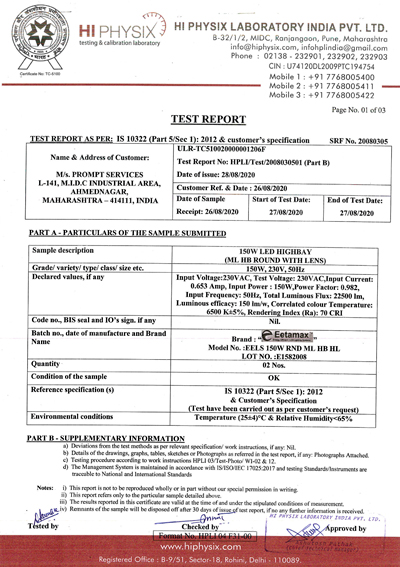

IP66 Report

avira-bay-light-ip66-report

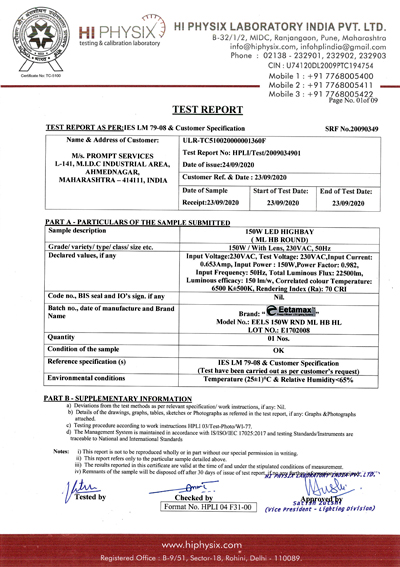

LM79 Report

avira-bay-light-lm79-report

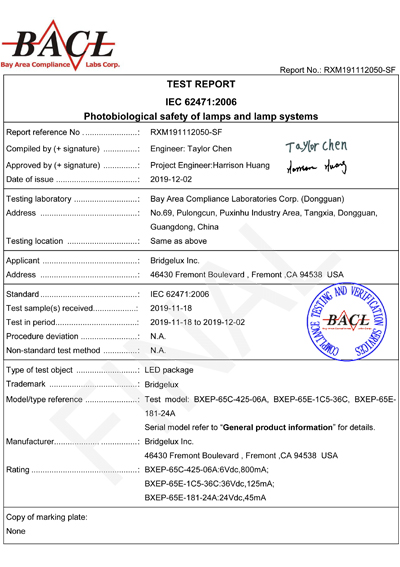

Photobiological Safety Report

photobiological-safety-report
