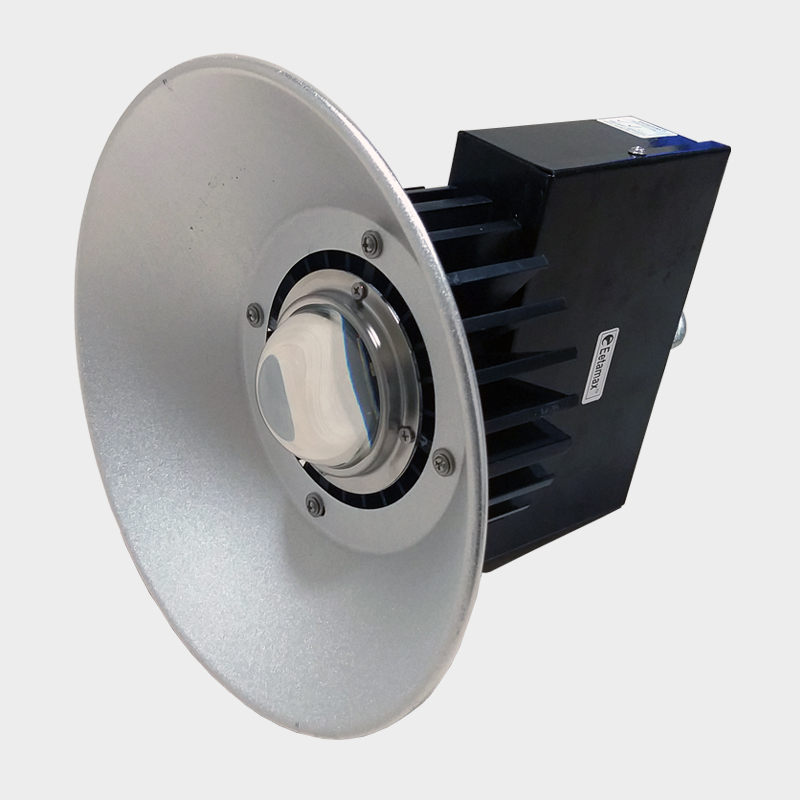

EELS 35W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
35 Watts |
INITIAL LUMENS |
4200 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
2.740 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 4200 lm, luminaire wattage 35W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 40W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
40 Watts |
INITIAL LUMENS |
4800 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
2.740 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 4800 lm, luminaire wattage 40W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 60W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
60 Watts |
INITIAL LUMENS |
7200 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
2.740 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 7200 lm, luminaire wattage 60W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.

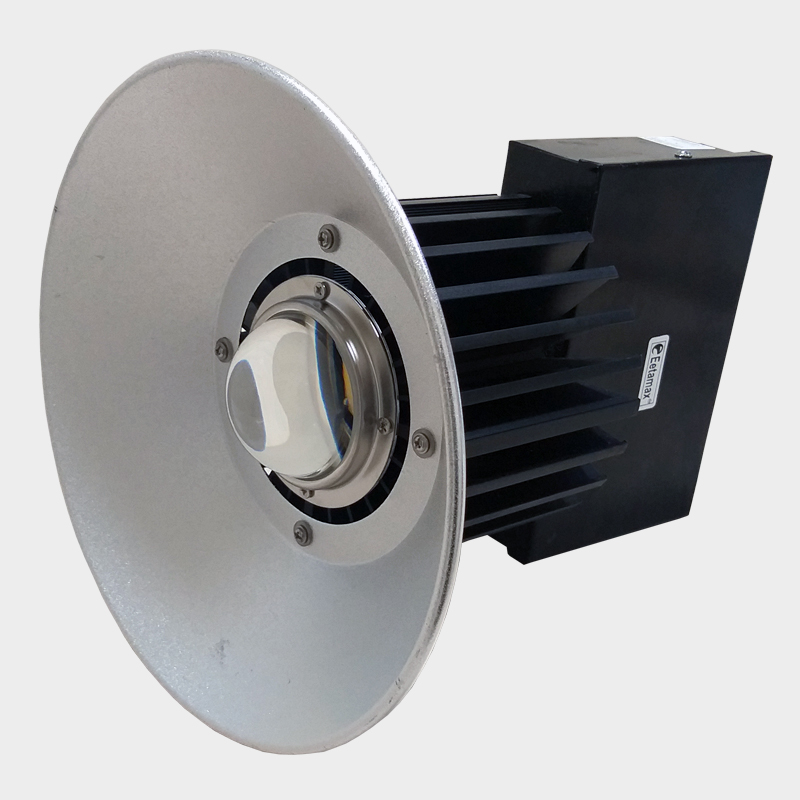

EELS 80W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
80 Watts |
INITIAL LUMENS |
9600 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
4.560 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 9600 lm, luminaire wattage 80W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 100W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
100 Watts |
INITIAL LUMENS |
12000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
4.560 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 12000 lm, luminaire wattage 100W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.

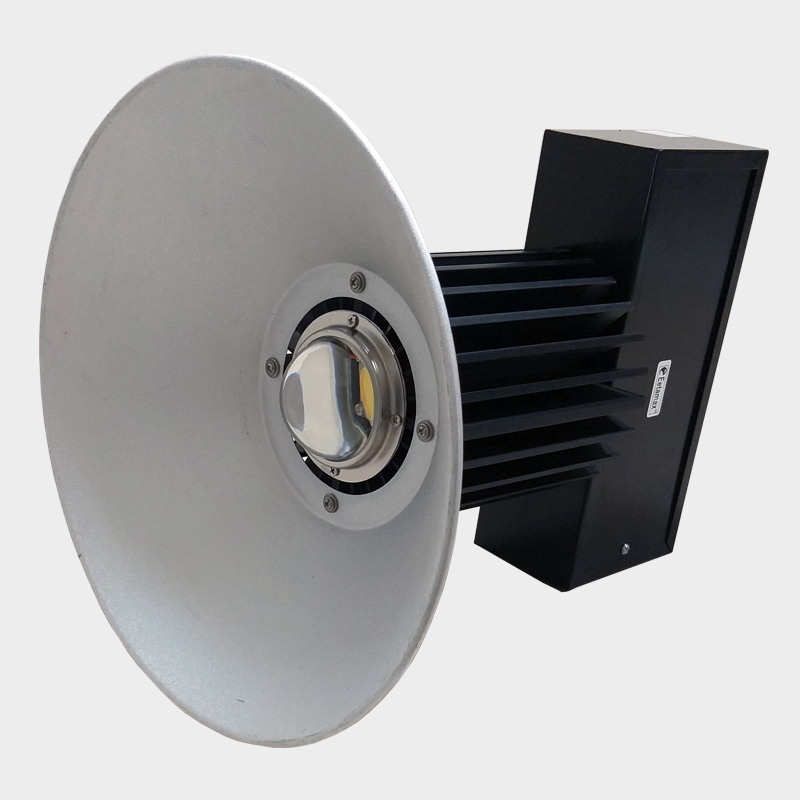

EELS 120W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
120 Watts |
INITIAL LUMENS |
14400 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
6.130 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 14400 lm, luminaire wattage 120W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.

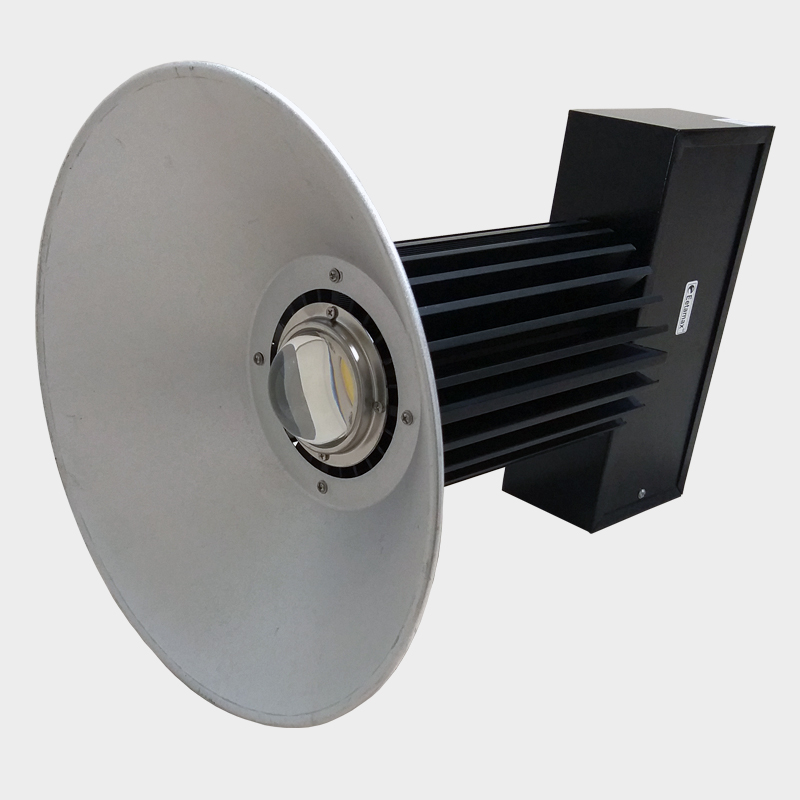

EELS 150W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
150 Watts |
INITIAL LUMENS |
18000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
7.250 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 18000 lm, luminaire wattage 150W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.

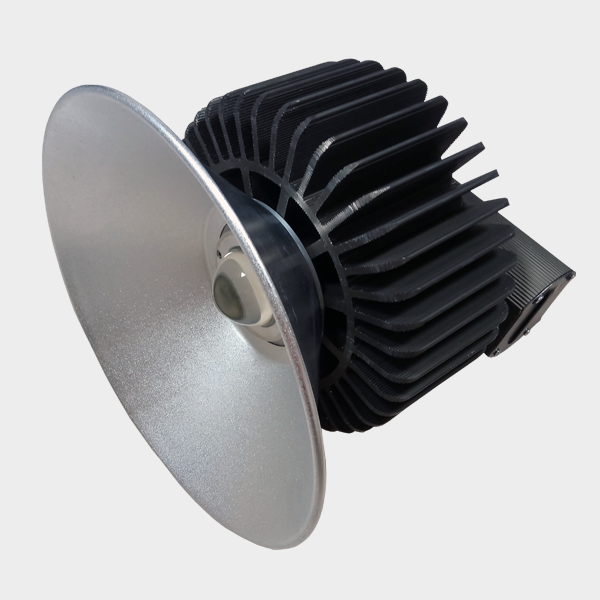

EELS 200W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
200 Watts |
INITIAL LUMENS |
24000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K–6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Short Circuit, Over voltage protection. Over current protection, Over temperature protection. |
WEIGHT |
10 Kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 24000 lm, luminaire wattage 200W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 240W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
240 Watts |
INITIAL LUMENS |
28800 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K–6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Short Circuit, Over voltage protection. Over current protection, Over temperature protection. |
WEIGHT |
10 Kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is clear borosilicate glass.
LED system
Luminaire luminous flux 28800 lm, luminaire wattage 240W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
