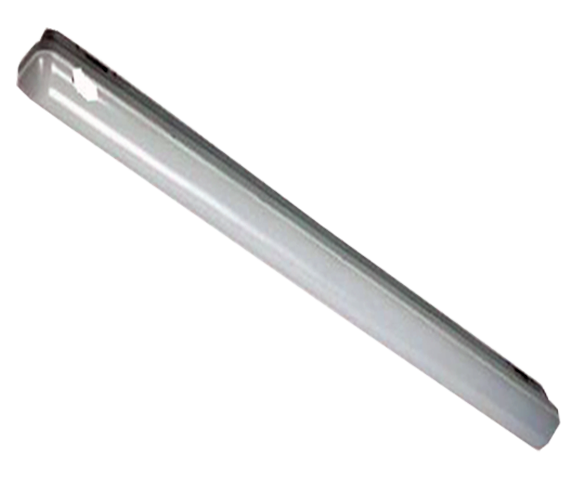

Weatherproof LED Linear Lights - IP65
We are Manufacturer, Supplier and Exporter of Weatherproof LED Linear Lights - IP65. This product is also known as Weatherproof Linear Lights, Waterproof LED Linear Lights etc. Our setup is situated in Ahmednagar, Maharashtra, India. We provide best quality LED Lightning solutions for Industries.
Weatherproof variety of the popular channel product. This product is more suitable for use in heavy duty industrial applications involving a lot of metallic dust and sand. It is also suitable for use in food processing industry, cold, storages, and in outdoors applications.
Features
- Aesthetically elegant & Robust design
- Excellent thermal design for long life
- Delivers Uniform Light distribution
- Inbuilt Electronic Protections
Applications
- Inspection Area
- Quality Labs
- Kitchen Area
- Commercial Showrooms
- Laboratory Area
- Institutes
| Mechanical Specification | |
Fixture Housing |
Fitting Housing Polycarbonate |
Diffuser Closure |
Milky Diffuser for Glare Free Symmetric Light Distribution |
IP |
IP65 |
| Luminaire Specification | |
| Available Variants | 30W / 40W |
| System Efficacy ( Lm/W ) | >120 lm/W |
| L70 Life | >50,000 Br.hrs |
Operating Temperature |
From 0° to +50° C |
| LED lamp | |
Light Source |
SMD |
Lamp Efficacy |
>150 lm/W |
Colour Temperature |
6500K (Other CCT Available on request) |
| CRI | >80 |
| Certification / Report |
LM80, Photo Biologically Safe |
| Beam Angle |
120° |
| LED Driver Specification | |
Type of Driver |
Constant Current |
Input Voltage Range |
150VAC ~ 265VAC |
Frequency Range |
50 Hz |
| Power factor | > 0.97 |
| Total Harmonic Distortion | < 10 % |
| Surge Protection | 4 kV |
| Protection | Surge Protection Output Short Circuit Overload Protection Over Voltage Protection Thermal Protection Mis-Wiring |
| Optics | |
| Optics Type | Milky Diffuser for Glare Free Symmetric Light Distribution |
| MOC of Optics | Polystyrene Sheet |
LINEAR STANDARD PARAMETERS
| Sr. | System Wattage | Lumen Package | Length (mm) | Width (mm) | Fixture Height (mm) | Weight (Kg) |
| 1 | 30W | 3600 lm | 1180 | 90 | 65 | 1.6 Kg. |
| 2 | 40W | 4800 lm | 1180 | 90 | 65 | 1.6 Kg. |
