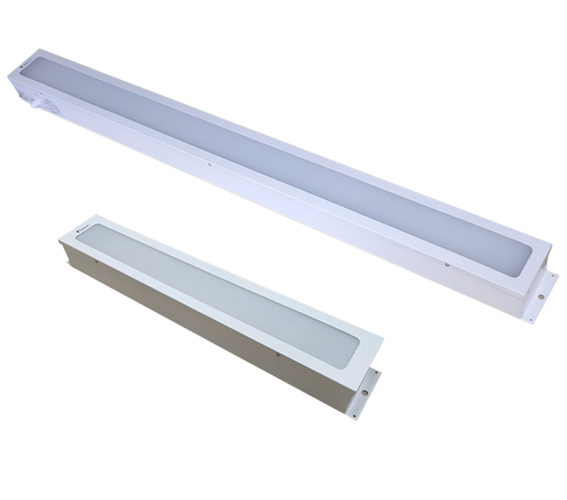

Regular LED Linear Lights
We are Manufacturer, Supplier and Exporter of Regular LED Linear Lights. This product is also known as Led Linear Lighting Strips, Linear Lighting Systems etc. Our setup is situated in Ahmednagar, Maharashtra, India. We provide best quality LED Lightning solutions for Industries.
Versatile and robust industrial lights used for general purpose illumination as well as for high lux requirements on inspection tables in the automobile industry, electrical industry, and medical equipment manufacturing industry.
Available in 2 varieties of 2 feet and 4 feet length.
Features
- Aesthetically elegant & Robust design
- Excellent thermal design for long life
- Delivers Uniform Light distribution
- Inbuilt Electronic Protections
Applications
- Inspection Area
- Quality Labs
- Machine Area
- Production Hall
- Laboratory Area
- Passage Area
| Mechanical Specification | |
Fixture Housing |
CRCA Housing in Sheet Steel with White Powder Coating |
Diffuser Closure |
Milky Diffuser |
IP & IK |
IP40 & IK05 |
| Luminaire Specification | |
| Available Variants | 20W / 30W / 40W / 50W / 60W |
| System Efficacy ( Lm/W ) | >100lm/W |
| L70 Life | >54,000 Br.hrs |
Operating Temperature |
From 0° to +50° C |
| LED lamp | |
Light Source |
SMD |
Lamp Efficacy |
>150 lm/W |
Colour Temperature |
6500K (Other CCT Available on request) |
| CRI | >80 |
| Certification / Report |
LM80, Photo Biologically Safe |
| Beam Angle |
120° |
| LED Driver Specification | |
Type of Driver |
Constant Current |
Input Voltage Range |
150VAC ~ 265VAC |
Frequency Range |
50 Hz |
| Power factor | > 0.97 |
| Total Harmonic Distortion | < 10 % |
| Surge Protection | 4 kV |
| Protection | Surge Protection Output Short Circuit Overload Protection Over Voltage Protection Thermal Protection Mis- Wiring |
| Optics | |
| Optics Type | Milky Diffuser for Glare Free Symmetric Light Distribution |
| MOC of Optics | Polystyrene Sheet |
LINEAR STANDARD PARAMETERS
| Sr. | System Wattage | Lumen Package | Length (mm) | Width (mm) | Fixture Height (mm) | Weight (Kg) |
| 1 | 20W | 2000 lm | 600 | 105 | 75 | 1.5 Kg. |
| 2 | 30W | 3000 lm | 600 | 105 | 75 | 1.5 Kg. |
| 3 | 30W | 3000 lm | 1200 | 105 | 75 | 2.7 Kg. |
| 4 | 40W | 4000 lm | 1200 | 105 | 75 | 2.7 Kg. |
| 5 | 50W | 5000 lm | 1200 | 105 | 75 | 2.7 Kg. |
| 6 | 60W | 6000 lm | 1200 | 105 | 75 | 2.7 Kg. |
