EELS 35W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
35 Watts |
INITIAL LUMENS |
4025 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
2.740 kg |
Product description
Luminaire type

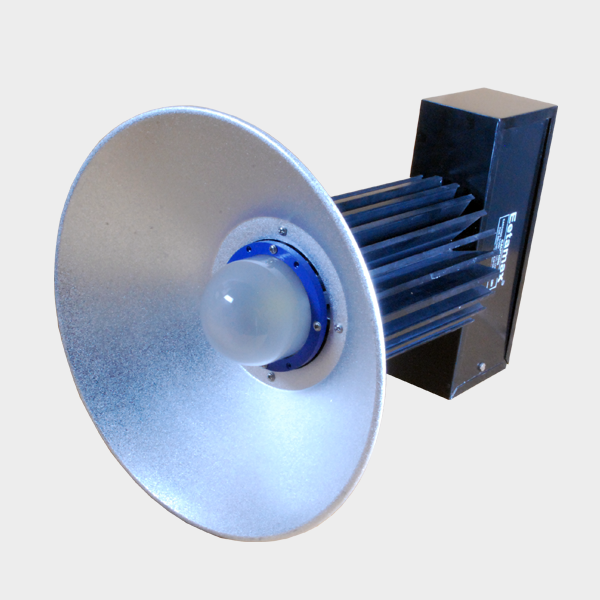

A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass.
LED system
Luminaire luminous flux 4025 lm, luminaire wattage 35W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 40W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
40 Watts |
INITIAL LUMENS |
4600 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
2.740 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass.
LED system
Luminaire luminous flux 4600 lm, luminaire wattage 40W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 60W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
60 Watts |
INITIAL LUMENS |
6900 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
2.740 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass.
LED system
Luminaire luminous flux 6900 lm, luminaire wattage 60W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 80W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
80 Watts |
INITIAL LUMENS |
9200 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
4.560 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass.
LED system
Luminaire luminous flux 9200 lm, luminaire wattage 80W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 100W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
100 Watts |
INITIAL LUMENS |
11500 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
4.560 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass
LED system
Luminaire luminous flux 11500 lm, luminaire wattage 100W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 120W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
120 Watts |
INITIAL LUMENS |
13800 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
0° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
6.130 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass.
LED system
Luminaire luminous flux 13800 lm, luminaire wattage 120W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
EELS 150W COB HB
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
COB LED |
TOTAL WATTAGE |
150 Watts |
INITIAL LUMENS |
17250 Lumens |
LUMENS / WATT |
115 Lm / Watts |
COLOUR TEMPERATURE |
3000K– 6500K |
CRI |
>80 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection. Over load protection, Surge Protection, Over voltage Protection |
WEIGHT |
7.250 kg |
Product description
Luminaire type
A suspended type LED high bay luminaire with specially designed reflector ensures superior optical performance with wide & uniform light distribution.
Applications
The luminaries can be used for lighting of indoor high bay applications in all type of industries.
Mounting methods
Eye bolt is provided to hang the fitting.
Optical system
MOC of optics is diffused borosilicate glass.
LED system
Luminaire luminous flux 17250 lm, luminaire wattage 150W, luminous efficiency of luminaire 115 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Extruded aluminium housing ( heat sink ) for efficient thermal management, sturdiness & excellent corrosion resistance. M.S Powder coated housing for controlgear. PG11 gland is used for cable entry for maintaining ingress protection.
